Ther-mix Heated Laboratory Thermal Mixer
Order Number
V102001: Vitl Ther-mix Base Unit

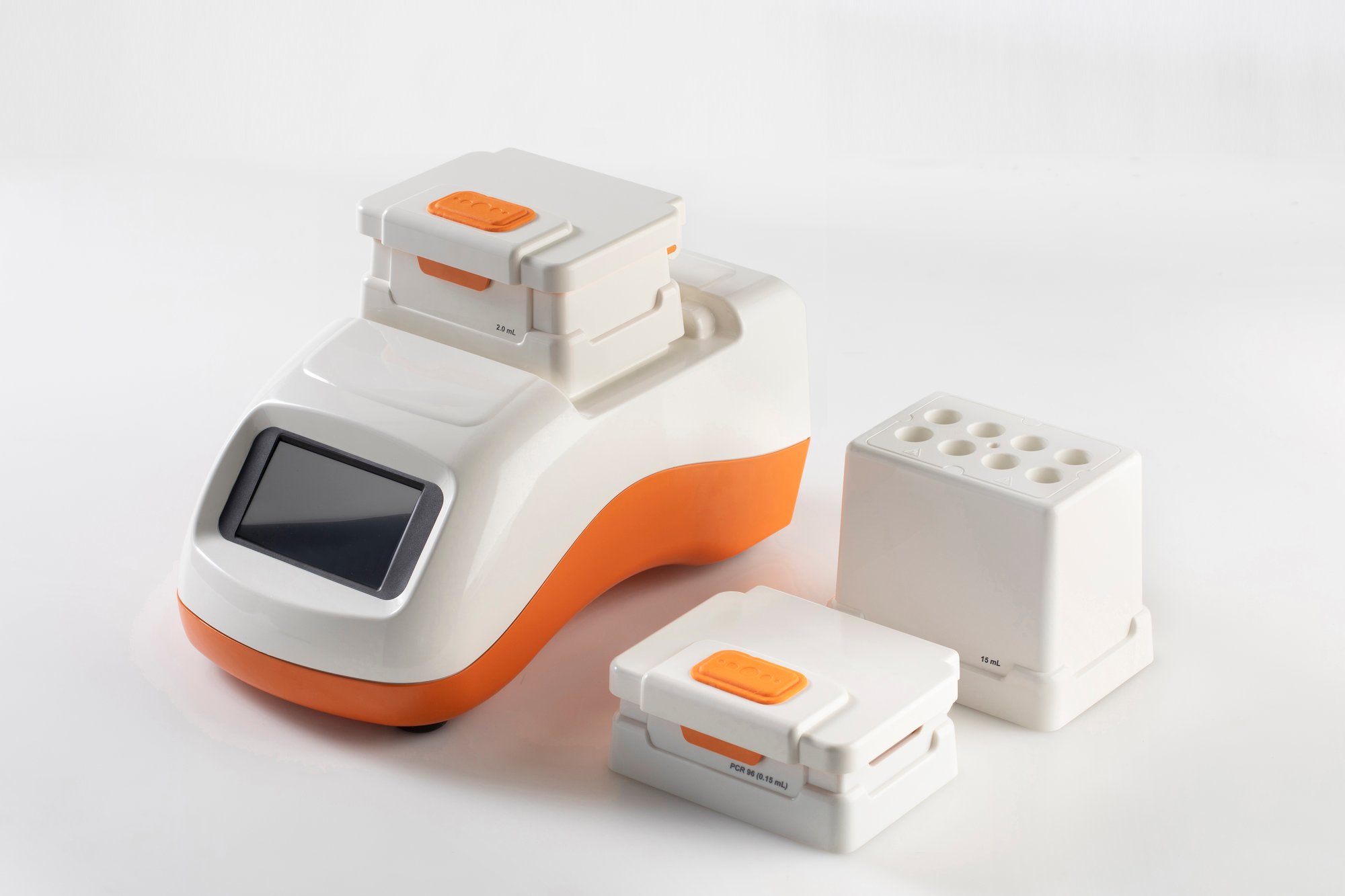

Ther-mix Heated Laboratory Thermal Mixer
It is no longer necessary to stand over your samples switching different mixing speeds and temperatures in your protocol, our Ther-mix heated mixer can do that all for you. When combined with our intuitive Heated Modules, the Ther-mix allows you to accurately mix and heat samples with ease. Create and store your own mixing profiles with multiple mixing and heating steps through the easy to use LCD touch-screen.
A compact, quiet and low vibration thermal mixer, our Ther-mix will provide outstanding temperature uniformity and stability to ensure reliable, reproducible results every time, and our versatile heat blocks prevent condensation in samples. Use with our intelligent Heated Modules for optimal flexibility.
Thermal mixer features:
- Temperature accuracy +/- 0.1°C
- 3mm mixing orbit
- Mixing speed of 200 - 3,000 rpm
- Capability to create and store your own mixing profiles
- Intuitive LCD touchscreen user interface
- Interchangeable Heated Modules support various sample tubes and vessels
- Unique compact design
Technical specifications:
- Speed range (0-80g load): 200 – 3,000 rpm
- Speed range (80-300g load): 200 – 2,000 rpm
- Timer range: 5 seconds – 28 days
- Block heater range: Ambient – 99.9 °C (self-limited by some Heated Modules)
- Lid heater range: Ambient - 105°C
- User defined programs: Memory for 100+ programs
- Dimensions (mm) W x D x H: 190 x 350 x 170 (excluding Heated Modules)
- Weight: 8kg
- Power supply: 100 – 240 VAC nominal
Ther-mix applications:
- Immunoassays, including ELISA
- PCR sample preparation
- Plasmid, RNA, DNA isolation, purification and denaturation
- Medium preheating- Enzymatic reactions under Control temperature
- cDNA synthesis
- Enzymatic reaction, including DNA restriction digestions, Proteinase K, digestion and ligation
- DNA, RNA and protein denaturation reaction
- Bacterial growth
- Lysis Reaction
- Plasmid purification
- Separation Magnetic bead or silicon bead from nucleic acid, protein
- Immunoprecipitation
- Pyrolysis reaction under certain temperature
- Cell re-suspension in the flow cytometry
- Components and suspension mixing and heating
- Antigen and antibody mixing
- Heated shaking or mixing in other biological or chemical experiments
The Ther-mix brings a whole new level of repeatability to heating and mixing protocols. How could our thermal mixer optimize your method?
